E-32 Week 4, SQ-3 Week 9 Progress Report for 11/7/14

By Committee Chairmen Steve Stockwell
November 11, 2014

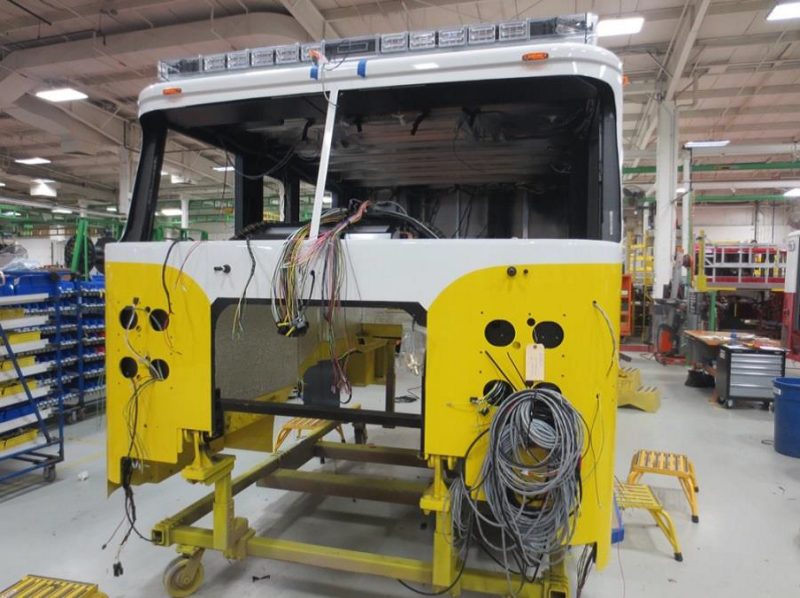

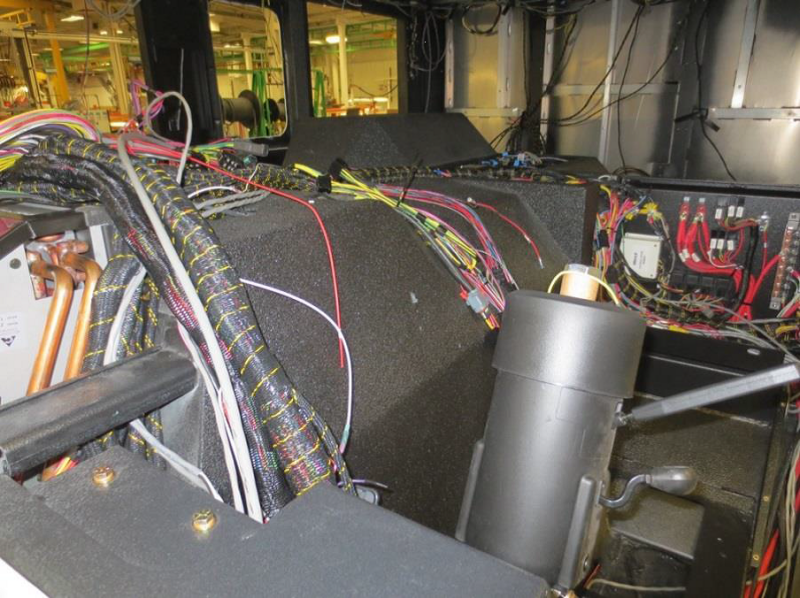

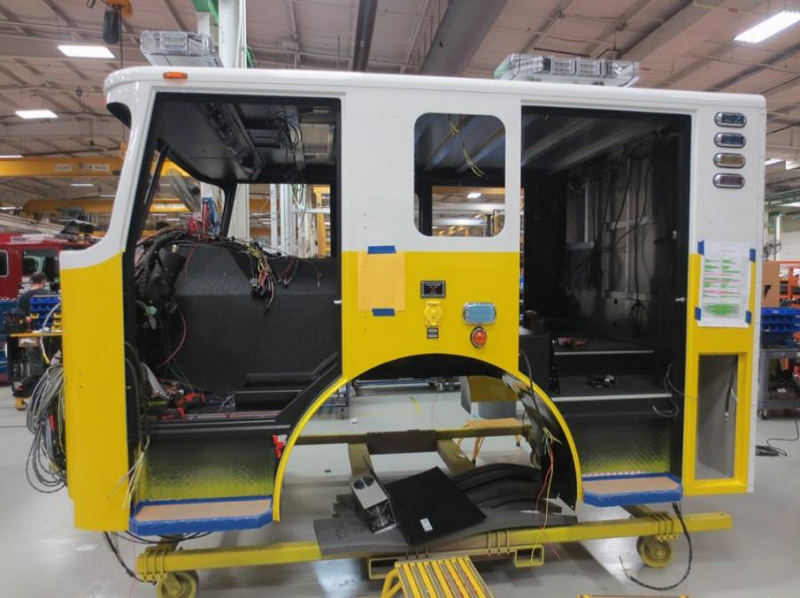

E-32 is currently in the process of pre-wiring of the lights, switches and major equipment components prior to being mated to the chassis. Paint is complete for both the Cab, Body, Pump and Chassis. Theses items should be mounted sometime within this week and some of the committee members will be heading to Wisconsin for Mid-Inspection. Hopefully we will get out there to see them drop the poly tank into the body. Hopefully we can get out there without any catches due to the big incoming weather I keep seeing all over the news.

SQ-3 looks to be nearly ahead of schedule as they have installed much of the interior body components, shelving and compartment equipment, including compartment lighting. Many of the warning lights have been installed as for the Generator or Light Tower I am unsure as of yet. One thing you will notice is the missing tire on the left side tandems, this is due to a size error we found at Mid-Inspection. Hopefully, I will get to sneak over and take a peek when we are out for E-32.

Also, I would like to mention the beautiful award I received at our Installation from the Past Fire Chief Robert Wahrenbrock and Current Chief Joe Gould on behalf of the members and officers, for the work done on these two committee's. I assure you it was not necessary and part of a group effort but thank you.

Units: E-32 and SQ-3

E-32
E-32
E-32
E-32

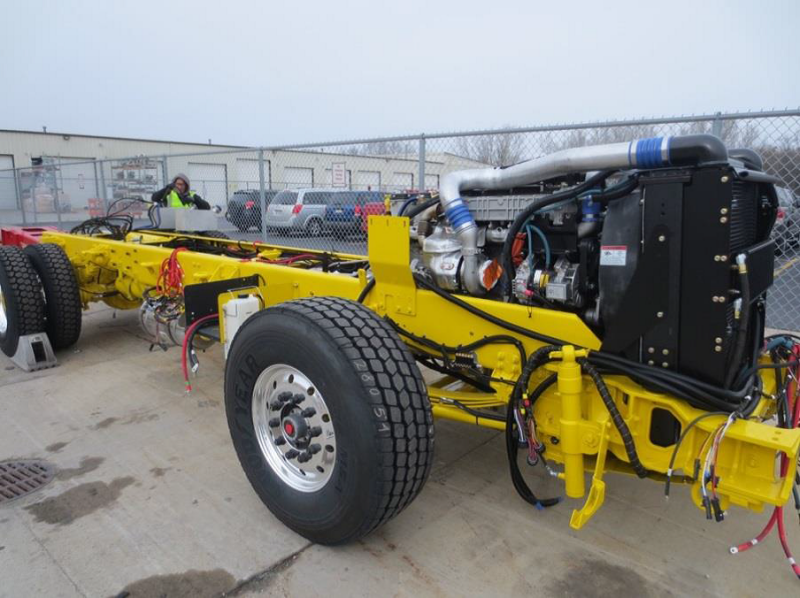

E-32 Rolling Chassis with DD13 and Allison 4000EVS Transmission
E-32 Rolling Chassis with DD13 and Allison 4000EVS Transmission

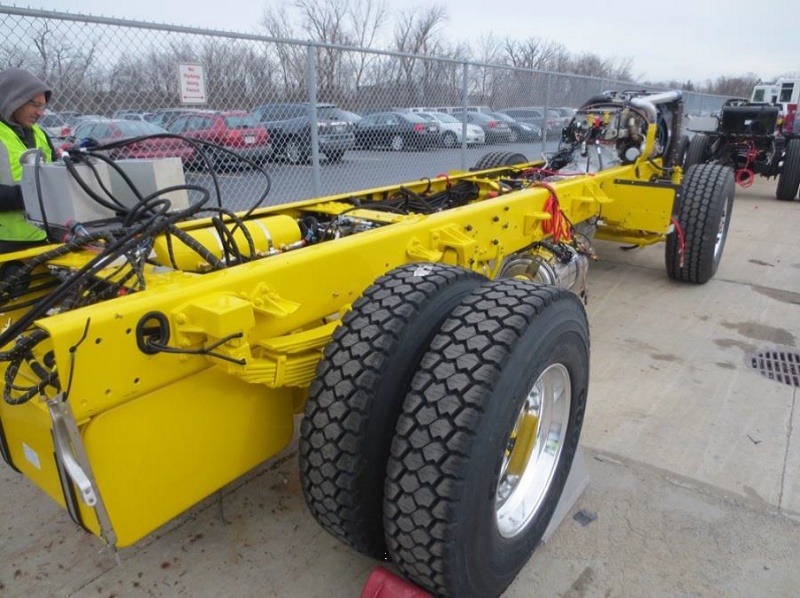

E-32 showing the rear axle with 65 gallon fuel tank.
E-32 showing the rear axle with 65 gallon fuel tank.

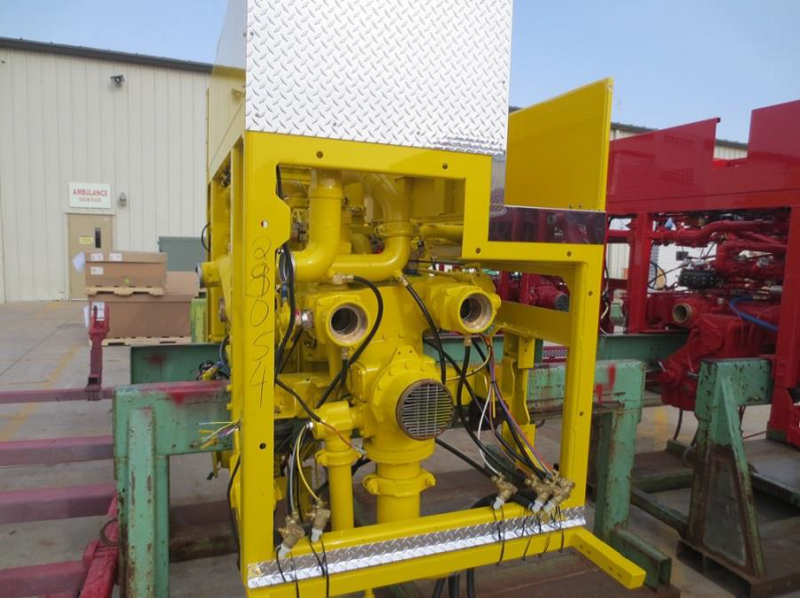

E-32 Hale Pump
E-32 Hale Pump

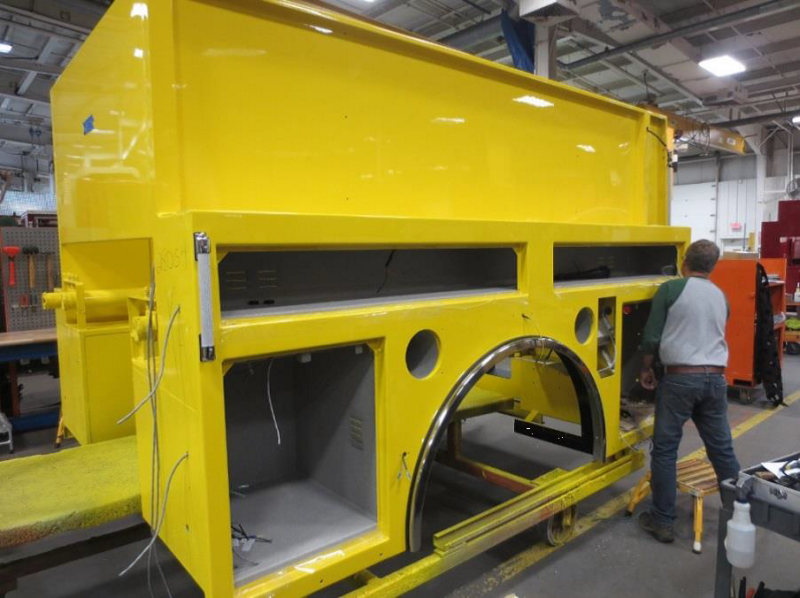

E-32 Body with broom compartments.
E-32 Body with broom compartments.

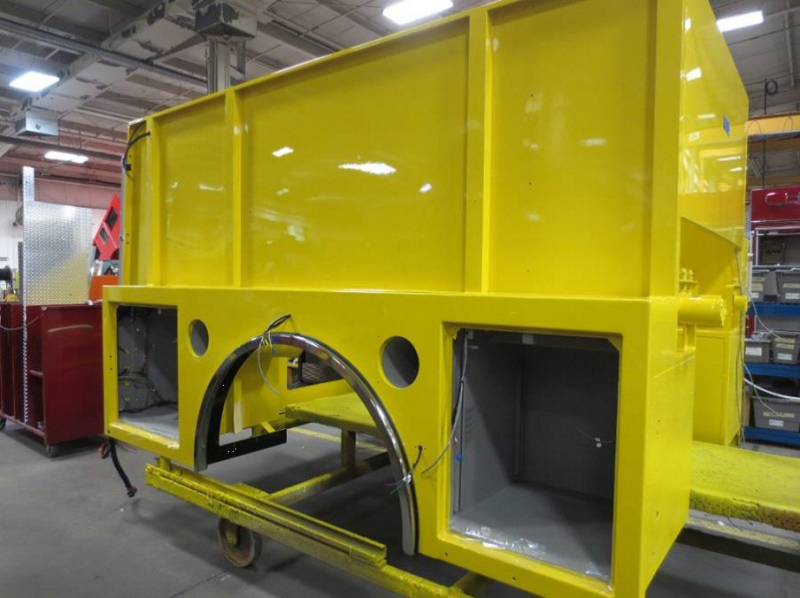

E-32 Officer side body
E-32 Officer side body

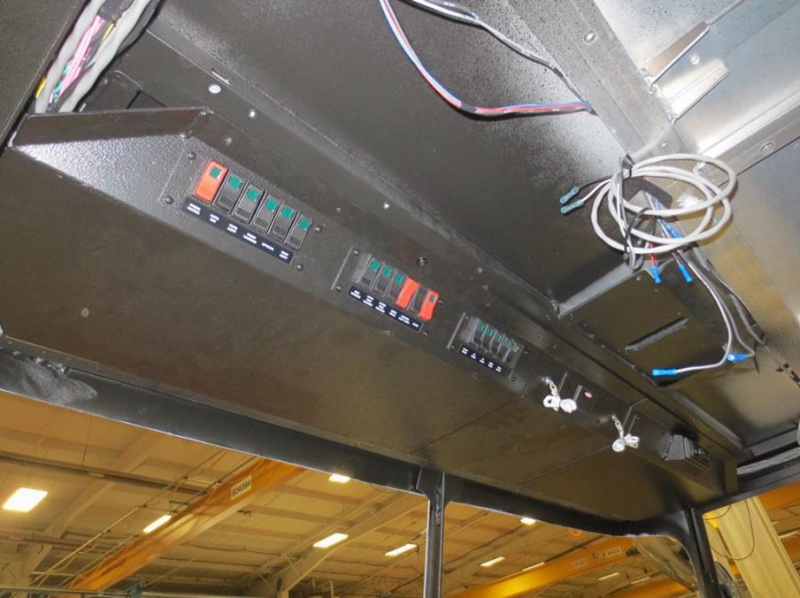

E-32 Cab Switches
E-32 Cab Switches

E-32
E-32

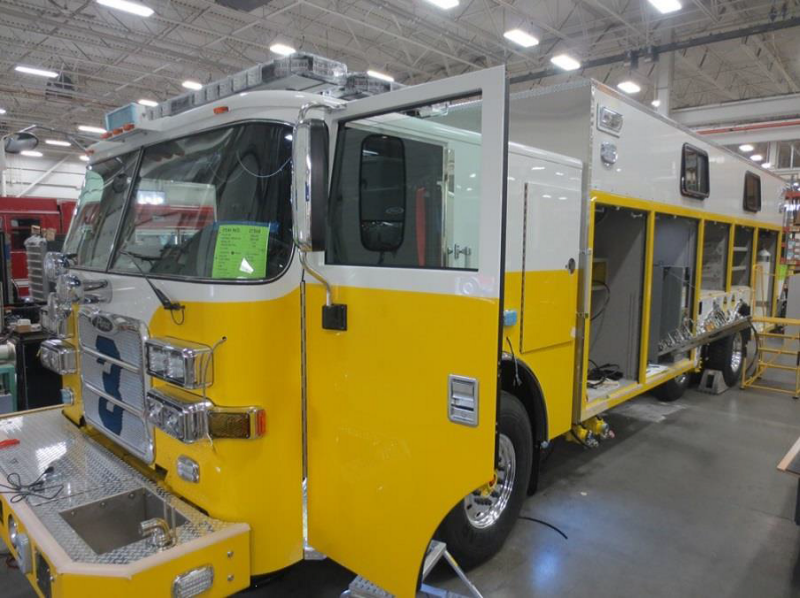

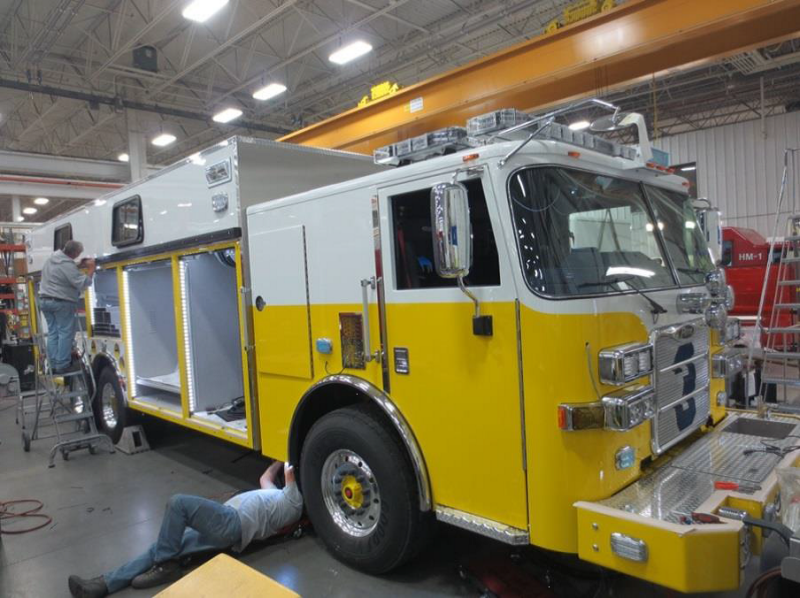

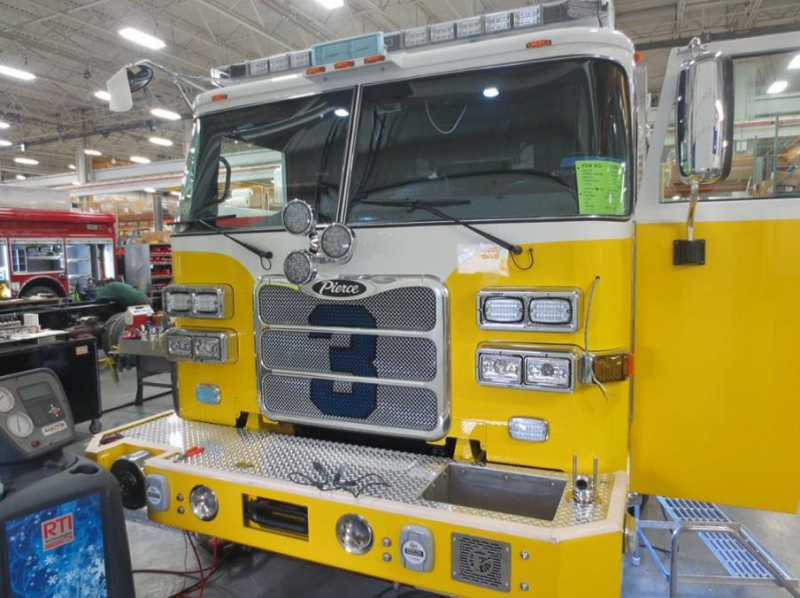

SQ-3
SQ-3

SQ-3
SQ-3

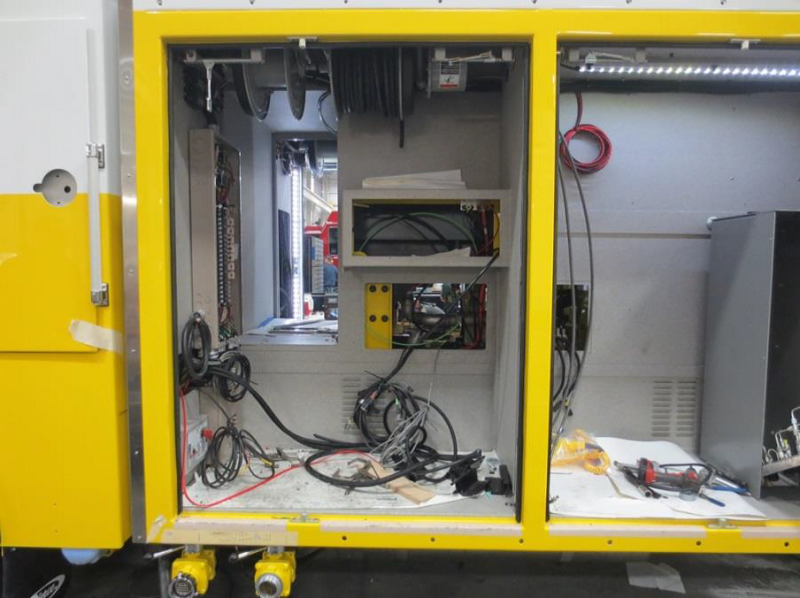

SQ-3 with circuit breaker box and transverse area for a little giant. Compartment L2 and L3.
SQ-3 with circuit breaker box and transverse area for a little giant. Compartment L2 and L3.

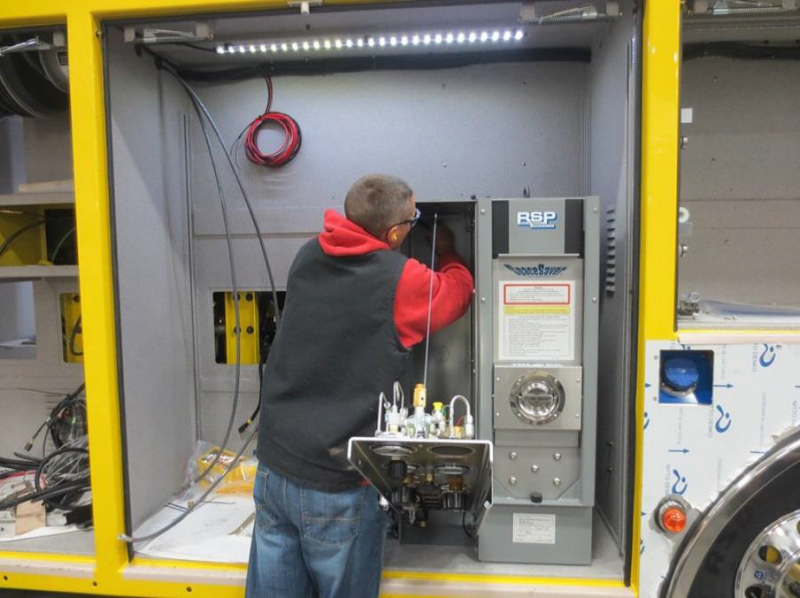

SQ-3 with the cascade unit being installed. Notice the compartment lighting throughout the truck is nearly finished. Compartment L3.
SQ-3 with the cascade unit being installed. Notice the compartment lighting throughout the truck is nearly finished. Compartment L3.

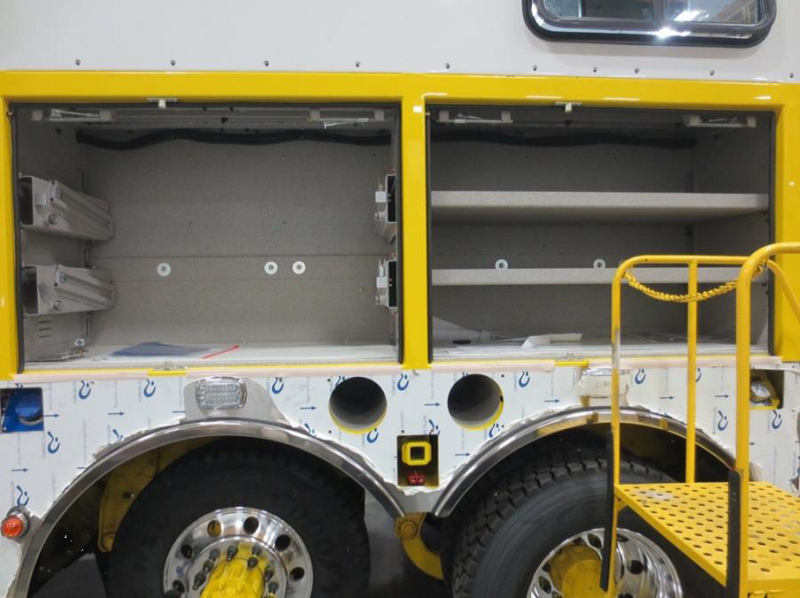

SQ-3 Compartment L4 and L5.
SQ-3 Compartment L4 and L5.

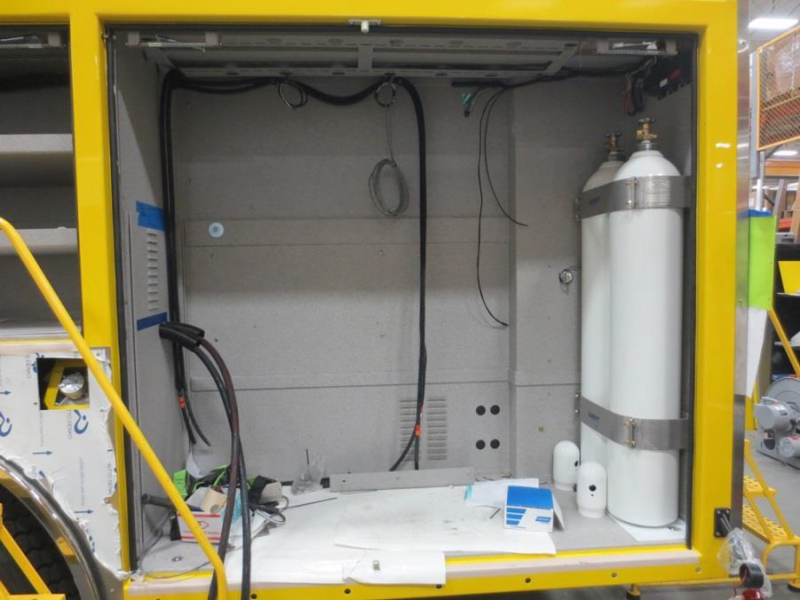

SQ-3 Compartment L6 with two of the four 6000psi stationary air supply installed.
SQ-3 Compartment L6 with two of the four 6000psi stationary air supply installed.

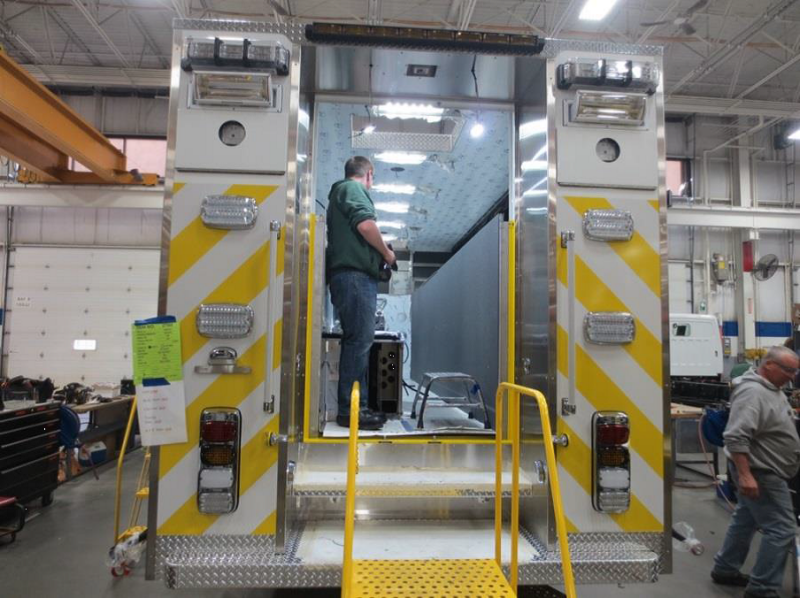

SQ-3, as you can see the rear and interior have come a long way from a few weeks ago. Two half light bars up top, with 1000W scene lights. Under those are compartment doors for our electric reels with 240/120v power.
SQ-3, as you can see the rear and interior have come a long way from a few weeks ago. Two half light bars up top, with 1000W scene lights. Under those are compartment doors for our electric reels with 240/120v power.

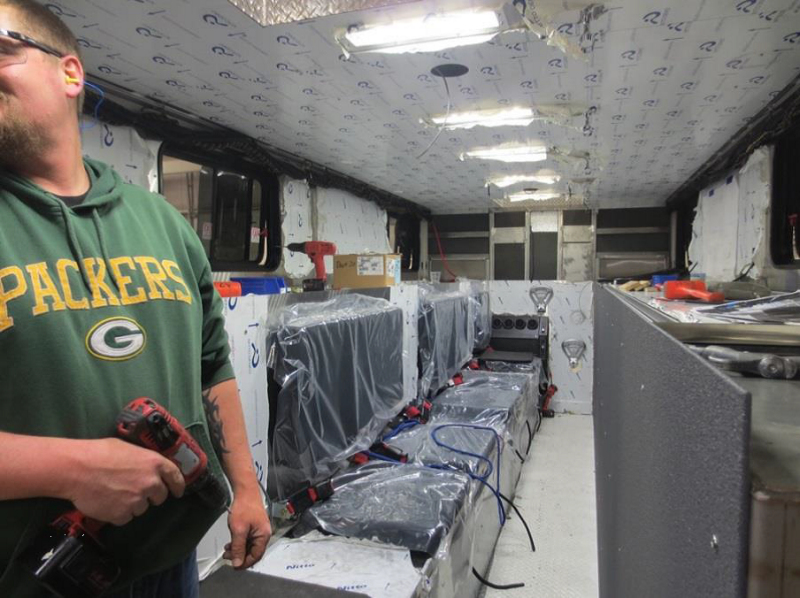

SQ-3, The seats have a nice reduced profile due to the reduced with 24' ladder in the ladder storage box underneath.
SQ-3, The seats have a nice reduced profile due to the reduced with 24' ladder in the ladder storage box underneath.

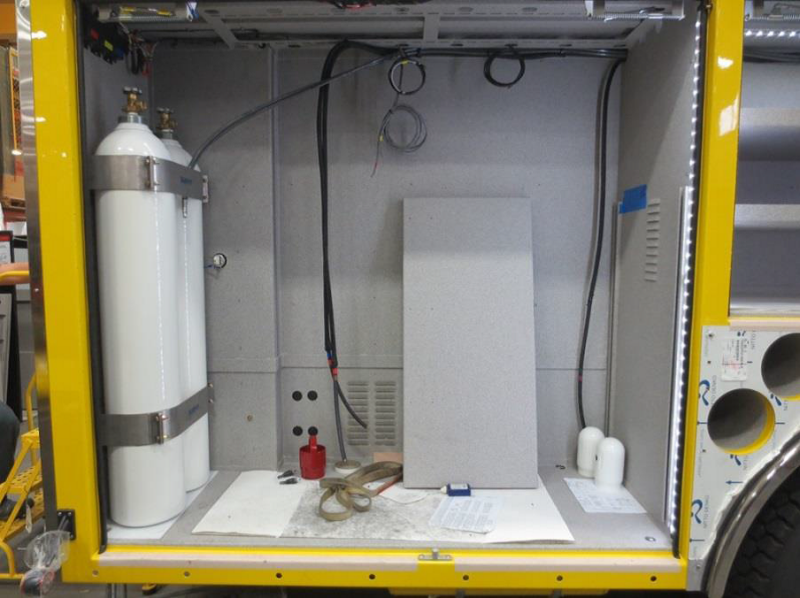

SQ-3, Compartment R6 with the other two stationary 6000psi for the cascade unit.
SQ-3, Compartment R6 with the other two stationary 6000psi for the cascade unit.

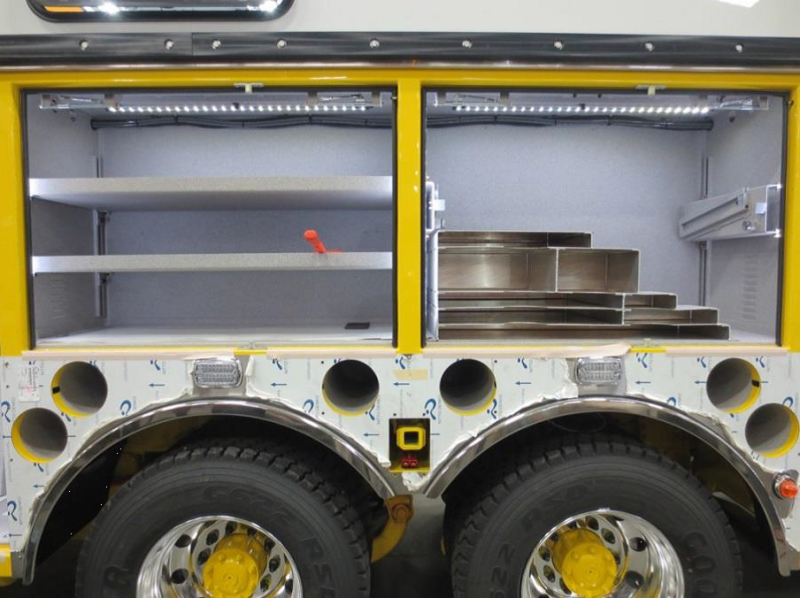

SQ-3 Compartment R5 and R4.
SQ-3 Compartment R5 and R4.

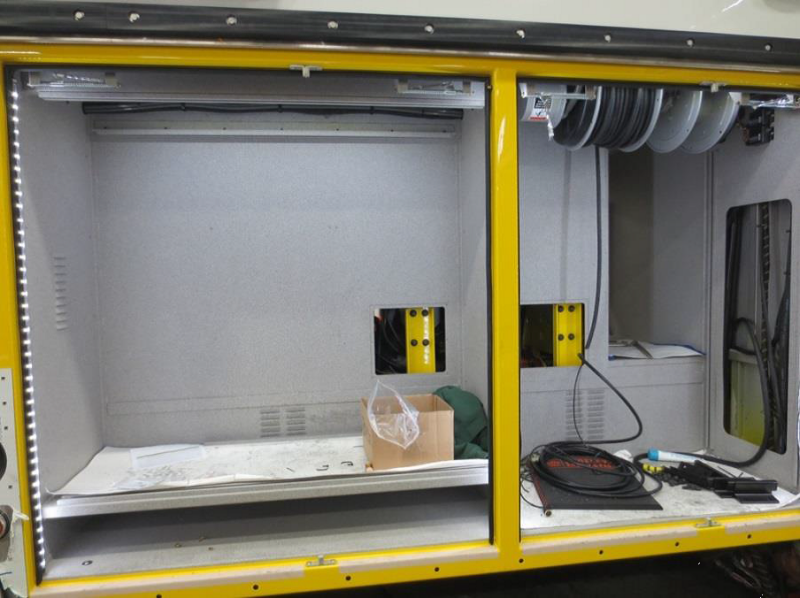

SQ-3 Compartment R3 and R2.
SQ-3 Compartment R3 and R2.

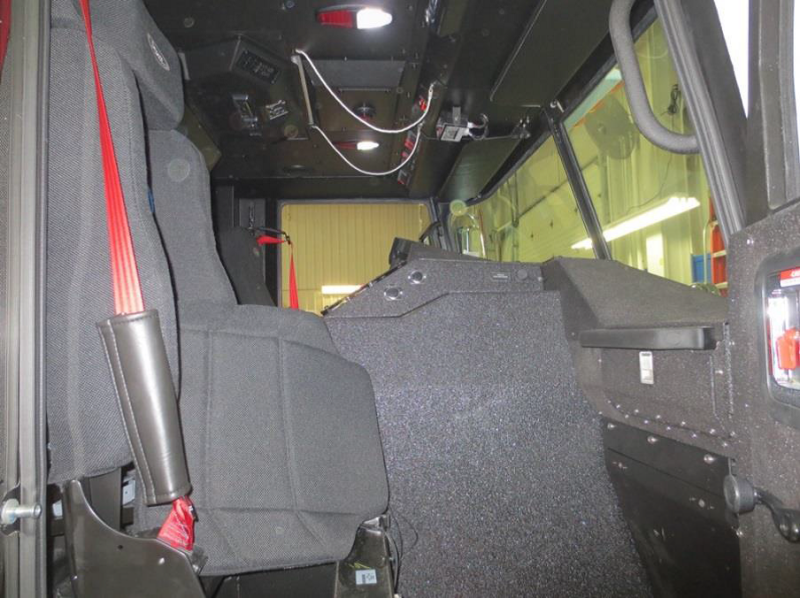

SQ-3, Officer Seat being installed.
SQ-3, Officer Seat being installed.
SQ-3
SQ-3
